PE120 Peltier System Features

Easy-to use, cryo-free temperature control solution from -25°C* to 120°C

The PE120 stage is a simple to use thermoelectrically cooled stage that accurately controls the temperature of microscope slides to +/-0.1°C from -25°C* to 120°C. As a low-cost system, this stage is ideally suited to basic temperature application work.

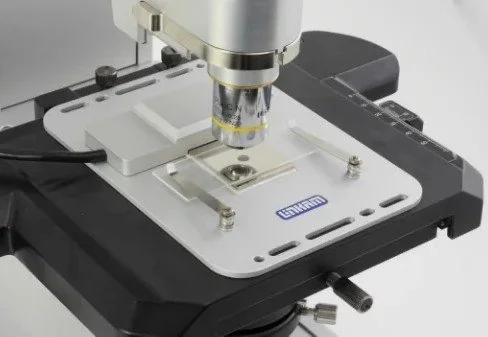

The PE120-XY is based on the standard PE120 but is designed to fit into the adapter plate recess of many types of XY microscope stages including those of Marzhauser and Prior. The temperature-controlled plate is built onto a larger 110mm x 160mm adapter plate which simply drops into the recess of the XY table.

The T96 Peltier LinkPad controller is used to quickly programme a temperature profile by simply tapping the onscreen controls. Upgrading the system by adding the intuitive LINK software enables full PC control of the temperature, including features such as multiple temperature ramp profiles, real-time temperature graphing, and data export.

The system comes as a simple turnkey solution easily operated with little or no experience with temperature-controlled stages. As standard the systems are supplied with the Linkam WCP Water Circulation Pump.

* Temperatures below -20°C require an optional water chiller.
